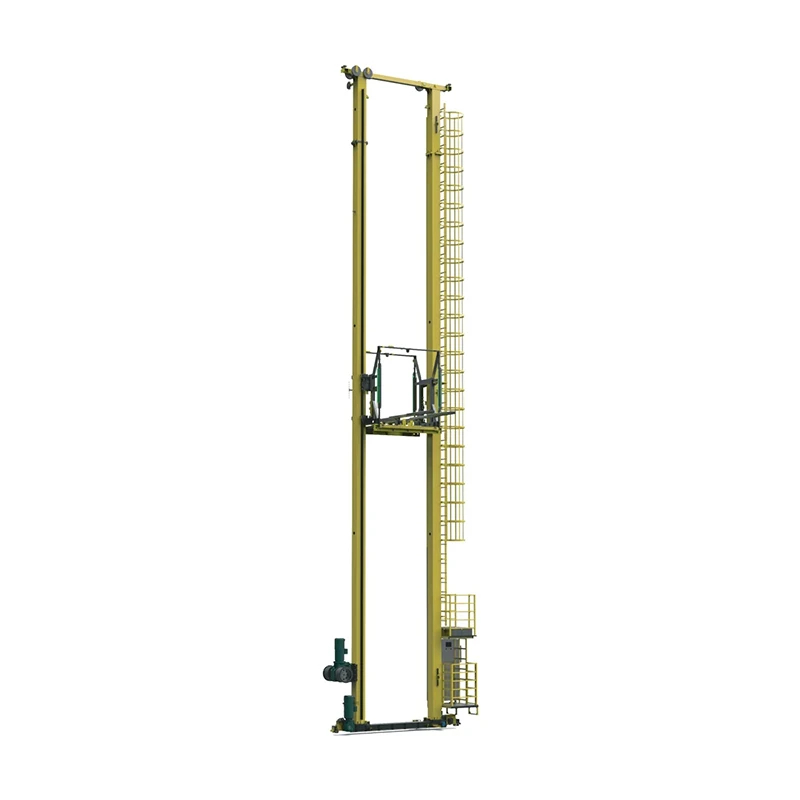

Heavy Duty Pallet Stacker Crane

The RSC2-5000 is designed for automated storage and retrieval of heavy pallets, large load carriers, and industrial materials weighing up to 5000 kg. Unlike standard pallet storage equipment, this model focuses on large single-load weight and the structural demands created by heavy industrial materials.

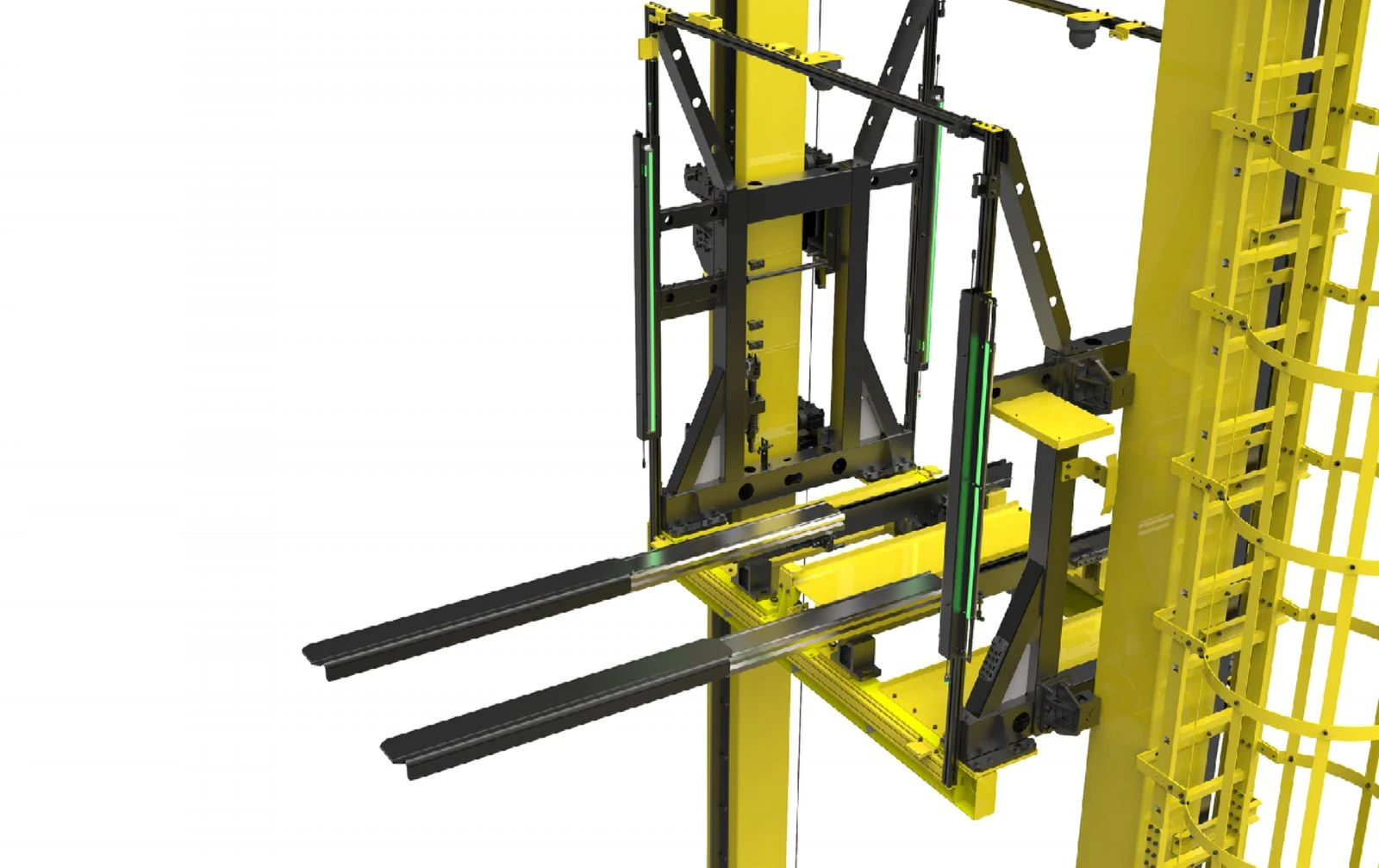

The machine uses a reinforced double-column structure together with large-section columns, high-rigidity guide rails, and a strengthened load platform. These components provide mechanical support while heavy loads are moved horizontally, lifted vertically, and positioned at rack locations.

The Heavy Duty Pallet Stacker Crane can be applied to heavy manufacturing materials, industrial tooling, large components, and other loads where standard pallet equipment does not provide sufficient rated capacity.

For a 5000 kg system, the maximum load is only one part of the engineering information required.

Procurement teams should provide the maximum unit weight, overall material length, width and height, pallet or tooling structure, load center position, storage height, aisle length, daily operating frequency, and inbound and outbound process.

Heavy loads generate higher forces during acceleration, stopping, and lifting. Structural rigidity, rail systems, load-bearing components, and assembly quality therefore become particularly important during machine design and manufacturing.

Non-standard load dimensions and system interfaces can be confirmed according to project requirements. Final specifications should be based on the actual carrier and warehouse conditions rather than assuming that every 5000 kg load has the same size or center of gravity.
