Suspension Chain Conveyor



Use Overhead Factory Space for Continuous Material Flow

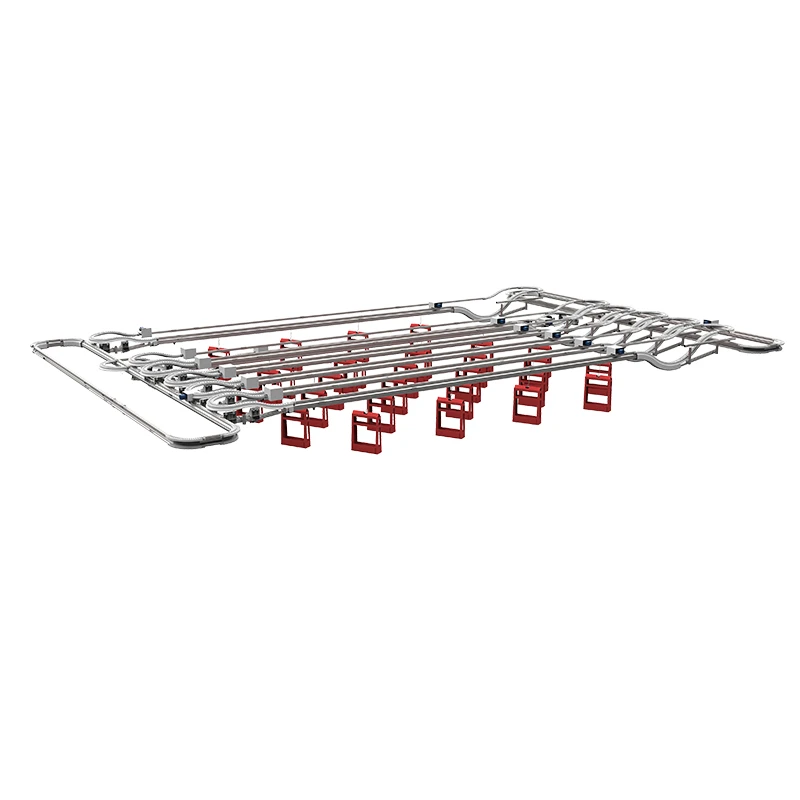

The Suspension chain conveyor is an overhead material-handling system that uses space above the production area instead of relying entirely on floor-level conveyor routes.

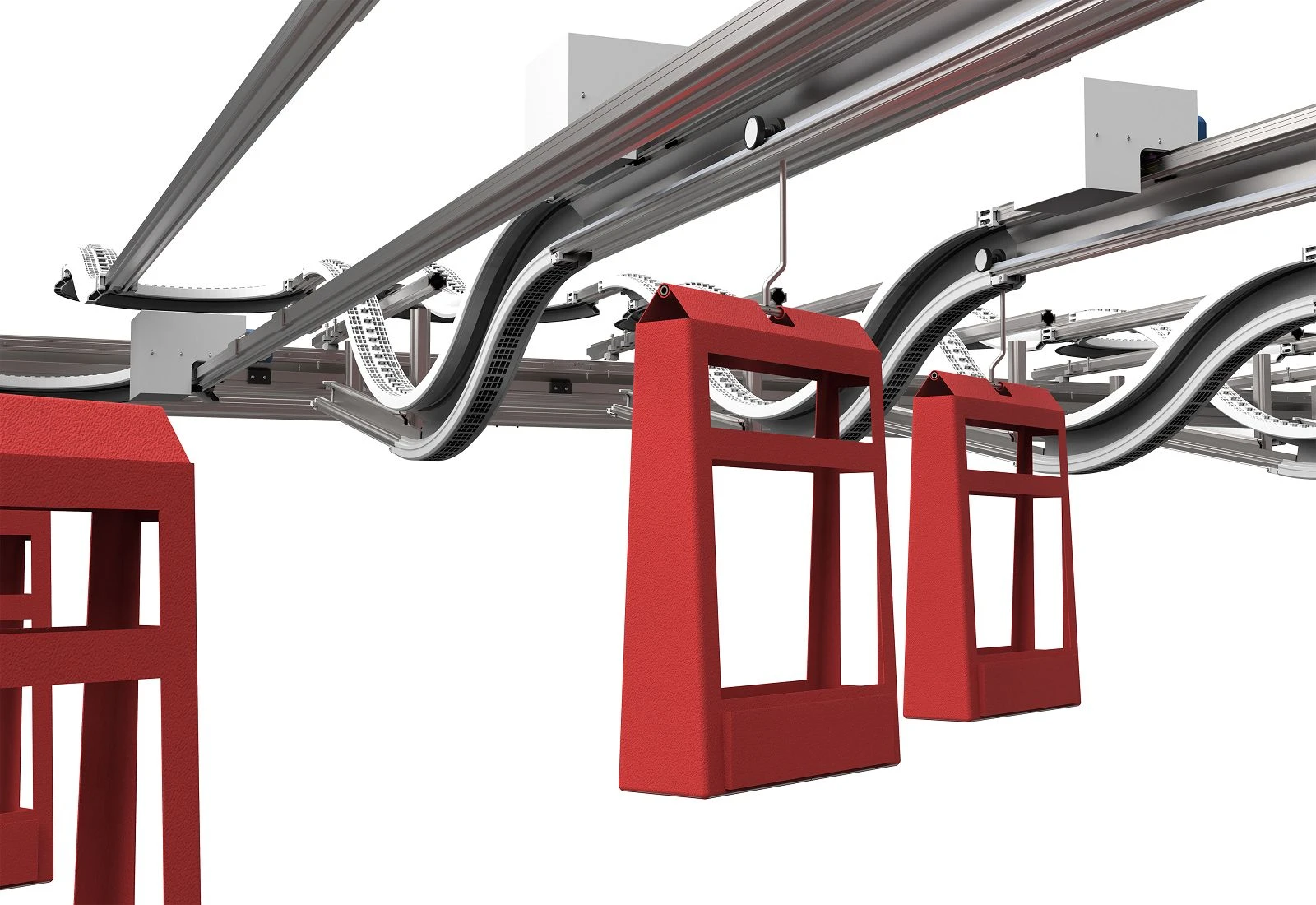

Its conveying rails and carriers are installed overhead, reducing the amount of ground space occupied by logistics equipment. This can leave more room for personnel passages, production machines, and workstation layouts.

Maximum load capacity is 10 kg per carrier.

The system is designed for continuous movement of suspended parts, carriers, or workpieces between production processes. The route can include both turns and inclined sections, allowing the conveyor to connect workstations or processing areas located at different positions and heights.

Incline angles within 30° can be customized according to the supplied product information.

Standard line widths are 800 mm, 1000 mm, and 1200 mm, with customization supported.

Standard station length is 2000 mm. Station width can be 600 mm, 800 mm, 1000 mm, or 1200 mm.

Standard station spacing is 2000 mm, while hanger rail spacing can be selected from 800 mm, 1000 mm, or 1200 mm. These dimensions can also be customized.

The specified line speed is 20–30 m/min, while the distance between main motors is 20–30 m.

These configurable dimensions allow the Suspension chain conveyor to be planned around factory space, workpiece size, carrier design, production-station positions, and process sequence.

For projects with several linked manufacturing stages, the conveyor route can therefore be designed around the actual production process rather than forcing the workstations into a fixed straight-line arrangement.

The supplied product information states that the system can operate continuously through high-temperature baking channels, harmful-gas areas, painting rooms, and cold rooms.

This allows materials to move through certain process areas where continuous manual entry may not be suitable.

For production lines involving painting, drying, assembly, or other linked processes, the overhead route can connect several operating zones into one material-flow system.

Before selecting the Suspension chain conveyor, buyers should confirm actual carrier weight, workpiece dimensions, available factory height, total conveying route length, turning positions, incline angle, number of process stations, and required station dimensions.

Because line width, station dimensions, station spacing, hanger rail spacing, and incline angle all support customization, the final layout should be developed around actual site conditions.

10Yares of experience
in one-stop service

Anhui Rayo Automation has engineering capabilities in intelligent assembly, intelligent logistics, and non-standard automated line integration.

According to the supplied company information, its business has covered automotive, home appliances, new energy, transportation, aerospace, tobacco, apparel, and 3C electronics.

Mechanical design, electrical control, system integration, and onsite commissioning teams can participate in route planning, workstation confirmation, equipment manufacturing, and installation.

Manufacturing resources include gantry machining centers, laser cutting machines, CNC machining centers, CNC lathes, and bending machines.

Rayo also has offices in the United States, Europe, Japan, and Thailand and can support overseas project implementation and after-sales service for customized product projects.
