Pallet Shuttle Asrs

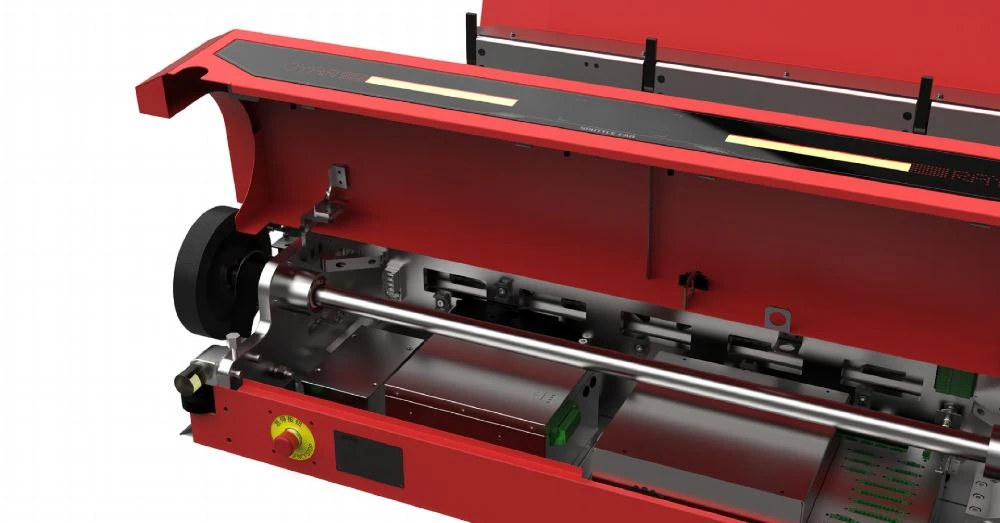

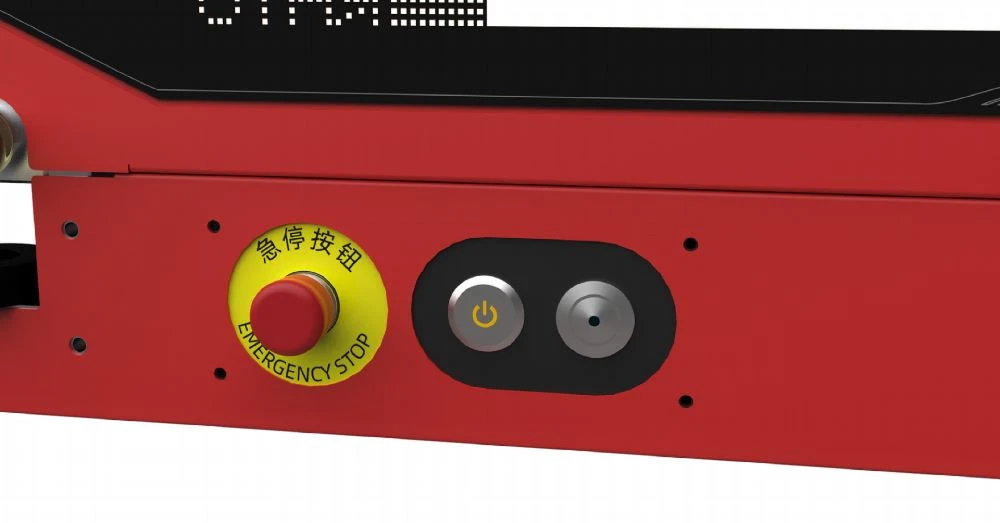

The RTSD-0050 fixed-spacing two-way shuttle is designed for fast storage and retrieval of totes, bins, and other light-load containers. Rated for 50 kg and equipped with a three-stage double-deep telescopic fork, it is better suited to high-frequency, multi-SKU operations than equipment built mainly for heavy pallet loads. As a compact pallet shuttle asrs solution, the unit uses a lightweight chassis and low-inertia drive system. Its body measures 1088 × 990 × 302 mm and weighs approximately 125 kg. It accommodates totes measuring 600 × 400 × ≥100 mm, with custom dimensions available for project-specific requirements.

Performance is centered on high-speed travel combined with double-deep handling. The shuttle reaches up to 4 m/s unloaded with 3 m/s² acceleration, and up to 3 m/s under load with 2 m/s² acceleration. Positioning accuracy is ±2 mm, with a fine-positioning time of 2.5 s. The three-stage fork travels at up to 1 m/s unloaded and 0.5 m/s loaded. By reaching two storage positions deep, the pallet shuttle asrs makes better use of rack depth while maintaining the throughput needed in tote-based warehouses with frequent inbound, outbound, and picking tasks.

High shuttle speed alone does not guarantee system performance. Reliable operation also depends on scheduling software, electrical control, and on-site integration. Anhui Rayo Automation Technology Co., Ltd. brings together mechanical engineering, electrical control, software development, and system integration capabilities across its smart logistics and digital systems businesses. Its CMMI Level 3 certification reflects a standardized software development and integration process, while electrical programming, commissioning, and after-sales teams can work together during implementation to reduce coordination between equipment and software suppliers in multi-shuttle projects.

For selection, buyers should first confirm tote dimensions, maximum unit weight, rack depth, and the required operating cycle, then determine the most suitable power supply and machine configuration. The RTSD-0050 supports loads up to 50 kg and can be adapted to different tote materials, dimensions, and load conditions. Available power options include supercapacitor and conductor-rail configurations; the supercapacitor option has a charging time of 10 seconds. For projects expected to grow from a single machine into a complete automated tote warehouse, the pallet shuttle asrs can be planned together with Ruiyou's end-to-end capabilities from requirement analysis and system design to manufacturing, installation, and commissioning.
