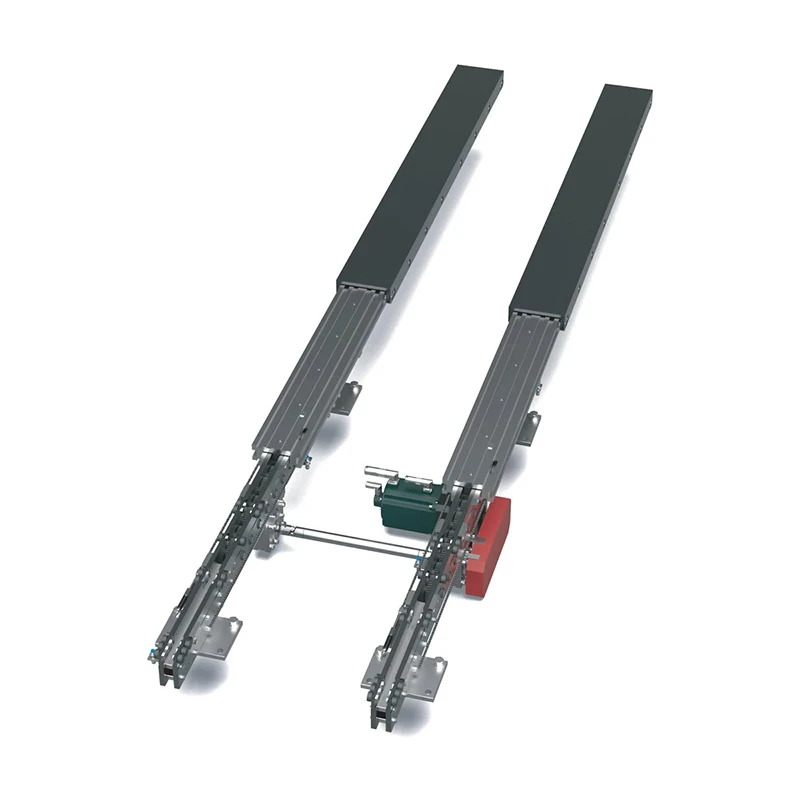

Pallet Telescopic Fork

The RFKB-170×70 series uses a single-extension structure and is available in several length combinations. Upper fork length and fork body length range from 1200 mm to 1600 mm. The corresponding extension stroke ranges from 1300 mm to 1700 mm.

The installation height is 160 mm.

These available sizes allow buyers to select the fork according to pallet depth, rack position, and the mechanical structure of the stacker crane load platform. Instead of using one fixed specification for every system, the fork length and stroke can be matched to the actual storage position.

The 170 × 70 mm section is listed in the supplied product information as an industry-standard specification and can be matched with mainstream standard stacker cranes, AGVs, and forklift attachments. This can be useful for new pallet storage systems as well as equipment modification or fork replacement projects.

The RFKB-170×70 series is positioned for projects that require up to 1200 kg load capacity without moving to a larger mechanical structure than necessary.

For many standard single-deep pallet applications, the series provides a practical balance between material use, machining requirements, long-stroke rigidity, and project budget. During selection, buyers should confirm the actual load, pallet dimensions, required stroke, installation height, and the mechanical space available on the matching stacker crane or AGV.

Different specifications also have different unloaded and loaded deflection values. For example, the 1200 mm fork body with a 1300 mm stroke has an unloaded/loaded deflection value of ≤8/18, while the 1600 mm version with a 1700 mm stroke is listed at ≤20/35.
