Warehouse Stacker Crane

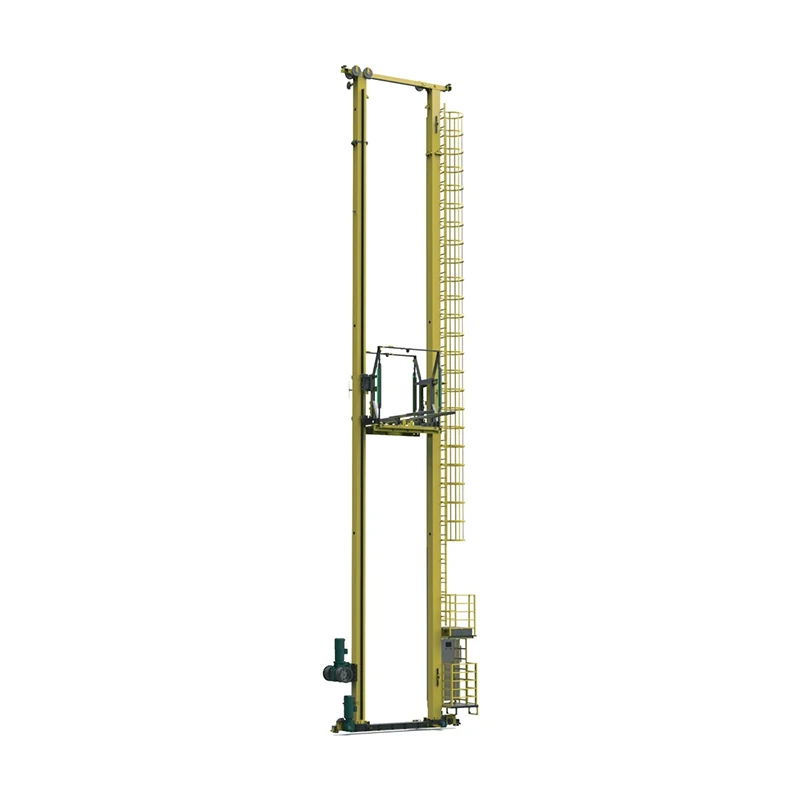

The RSC2-0500 is a double-mast, 500 kg light-duty stacker crane for automated storage and retrieval of medium-light loads. A lightweight structure combined with high-dynamic servo control allows horizontal travel speeds of up to 240 m/min, enabling rapid position changes even in long aisles. For component pallets, tooling carriers, and similar loads, the warehouse stacker crane supports frequent multi-level storage tasks while reducing forklift traffic inside rack aisles.
Maximum load is 500 kg, lifting travel can reach 24 m, and positioning accuracy is ±2 mm. The system can be arranged with one or two transfer stations. Communication can use optical or wireless technology, while travel positioning can be based on laser distance measurement or barcode positioning. Forks are available in single- or double-deep versions. These configuration choices allow the warehouse stacker crane to be matched to load dimensions, rack depth, the number of inbound and outbound stations, and the warehouse control architecture.
Rayo organizes stacker-crane projects so that the transition from concept design to on-site operation remains continuous. Mechanical engineering, electrical programming, software development, system integration, commissioning, and after-sales teams can participate throughout implementation. The company's headquarters are located in the Wuhu Area of the China (Anhui) Pilot Free Trade Zone, with R&D centers and branches in Shenyang, Shanghai, and Guangzhou. This cross-functional and cross-regional structure supports projects that require installation, system integration, and ongoing technical service.
Rayo's manufacturing facilities include gantry machining centers, laser cutting machines, CNC machining centers, CNC lathes, and bending equipment, supporting machining, assembly, and full-machine testing in-house. For selection, customers should provide maximum load, carrier type, aisle length, highest storage position, rack structure, and planned operating cycle so that travel range, lift height, fork type, and station arrangement can be defined. Where non-standard dimensions or unusual layouts are involved, the warehouse stacker crane can be engineered around the actual site instead of being limited to a fixed standard configuration.
|
Parameter Category |
Parameter |
Specification |
Customization / Options |
|
Basic Parameters |
Mast Structure |
Double mast |
|
|
Maximum Load |
500 kg |
||
|
Number of Stations |
Single station / double station |
||
|
Control System |
Siemens |
Inovance / Mitsubishi / AB |
|
|
Travel Parameters |

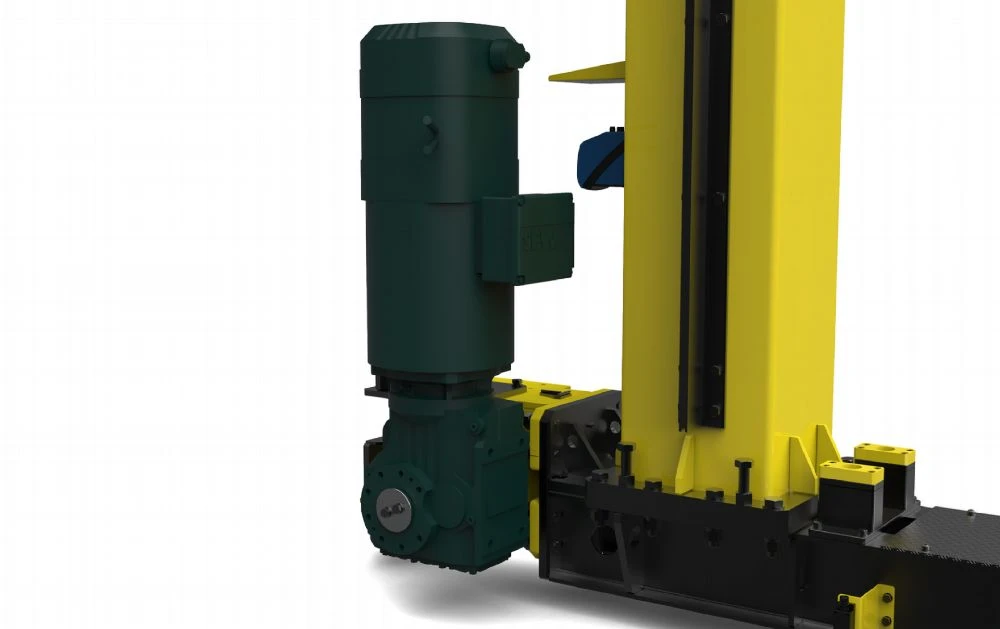

Travel Drive |
Asynchronous servo |
Servo |
|
Maximum Speed @ Acceleration |
240 m/min @ 0.5 m/s² |
||
|
Positioning Method |
Laser ranging |
Barcode positioning |
|
|
Positioning Accuracy |
±2 mm |
||
|
Communication |
Optical communication |
Wireless |
|
|
Lifting Parameters |
Lifting Travel |
13 m |
5-24 m customizable |
|

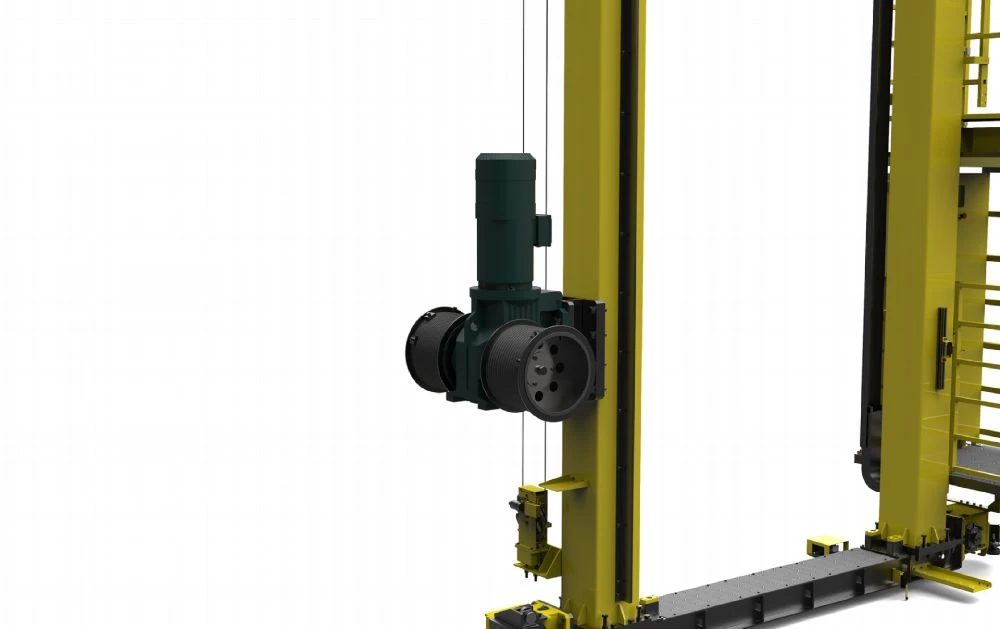

Lifting Drive |
Asynchronous servo |
Servo |
|
|
Maximum Speed @ Acceleration |
60 m/min @ 1 m/s² |
||
|
Positioning Method |
Laser ranging |
Barcode positioning |
|
|
Positioning Accuracy |
±2 mm |
||
|

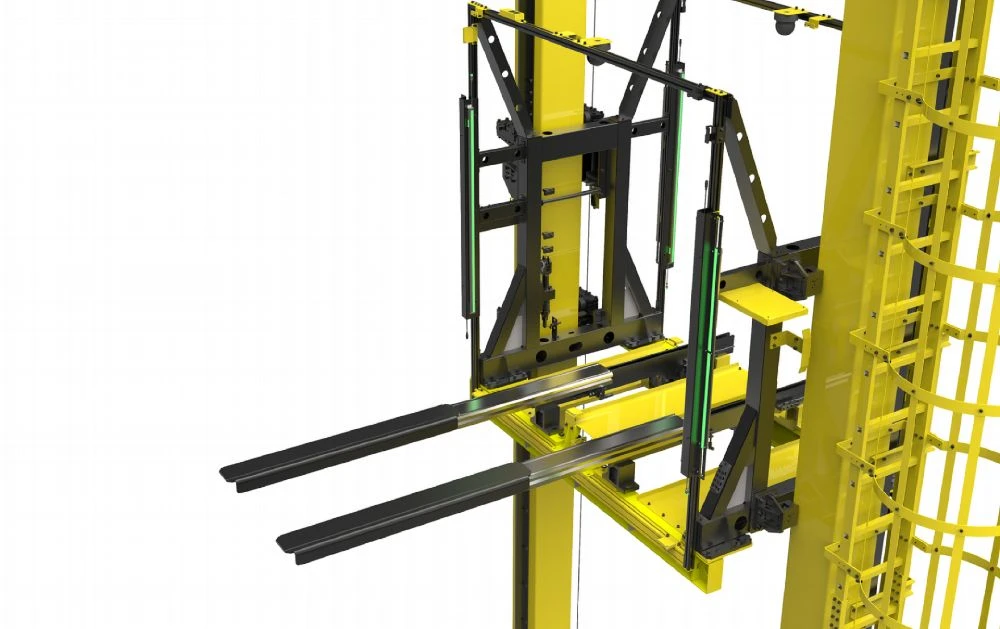

Fork Parameters |
Number of Forks |
Single fork / double fork |
|
|
Fork Extension |
Single-deep / double-deep |
||
|
Safety Protection |
Standard Configuration |
Fork center-position detection; cargo overtravel detection; cargo presence detection; lift limit detection; lift-end buffer; travel limit detection; travel-end buffer; audible and visual alarm; slack/broken-rope detection; speed governor + safety gear; emergency-stop button; anti-derailment device; rail cleaner; weighing/overload detection |
Standard |
|
Optional Configuration |
Fork-extension obstacle detection; lift forced deceleration; travel forced deceleration; aisle laser scanning; multi-machine anti-collision |
Optional |
