Electric Pallet Stacker Destacker
Unlike the pneumatic lifting arrangement used in the RAPQ series, this model uses an electric lifting system combined with a portal-frame mechanical structure.
Electric Lifting with Access Space for AGV Transfer

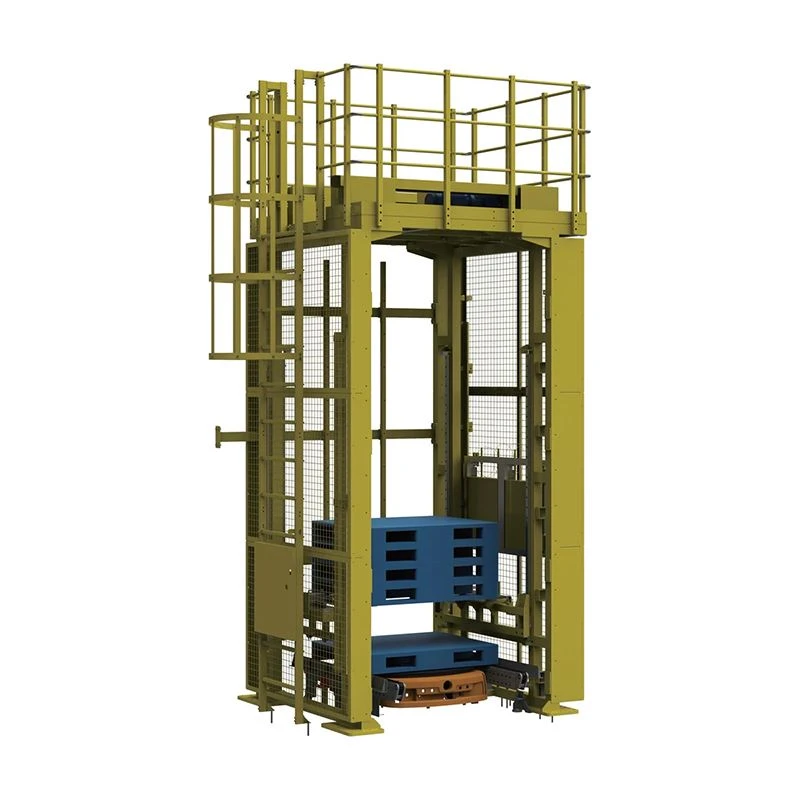

The RAPD-0750 is designed for automatic pallet destacking, stacking, individual pallet release, and pallet collection. Its maximum load capacity is 750 kg.
Unlike the pneumatic lifting arrangement used in the RAPQ series, this model uses an electric lifting system combined with a portal-frame mechanical structure.
A notable feature of the structure is the access area reserved for AGV entry and unloading. An AGV can enter the equipment operating area to complete pallet exchange, helping connect mobile transport, pallet stacking or destacking, and downstream conveying within one material-handling process.
The Electric Pallet Stacker Destacker can be applied at automated warehouse interfaces, production logistics areas, pallet circulation systems, and manufacturing sites where pallets need to be supplied or collected automatically.
2800 mm Stacking Height with Low-Level Transfer
The machine supports pallet sizes of 1200 × 1200 mm, 1000 × 1600 mm, and 1200 × 1000 mm. Customized pallet dimensions are also supported.
Maximum stacking height is 2800 mm, while the conveying height is 450 mm.

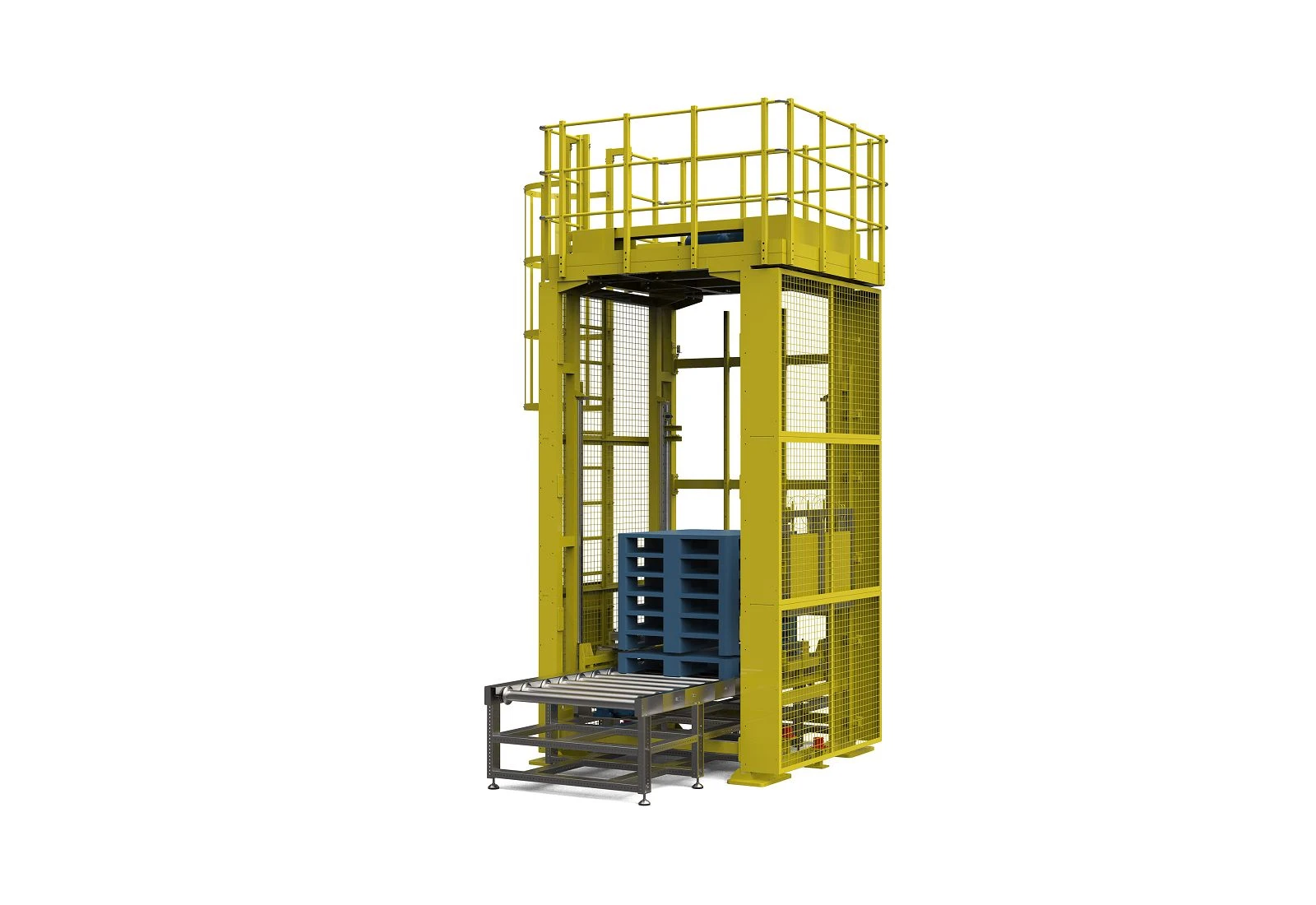

This relatively low conveying level can help the machine interface with low-level pallet conveyors, AGV transfer areas, and other automated logistics stations.

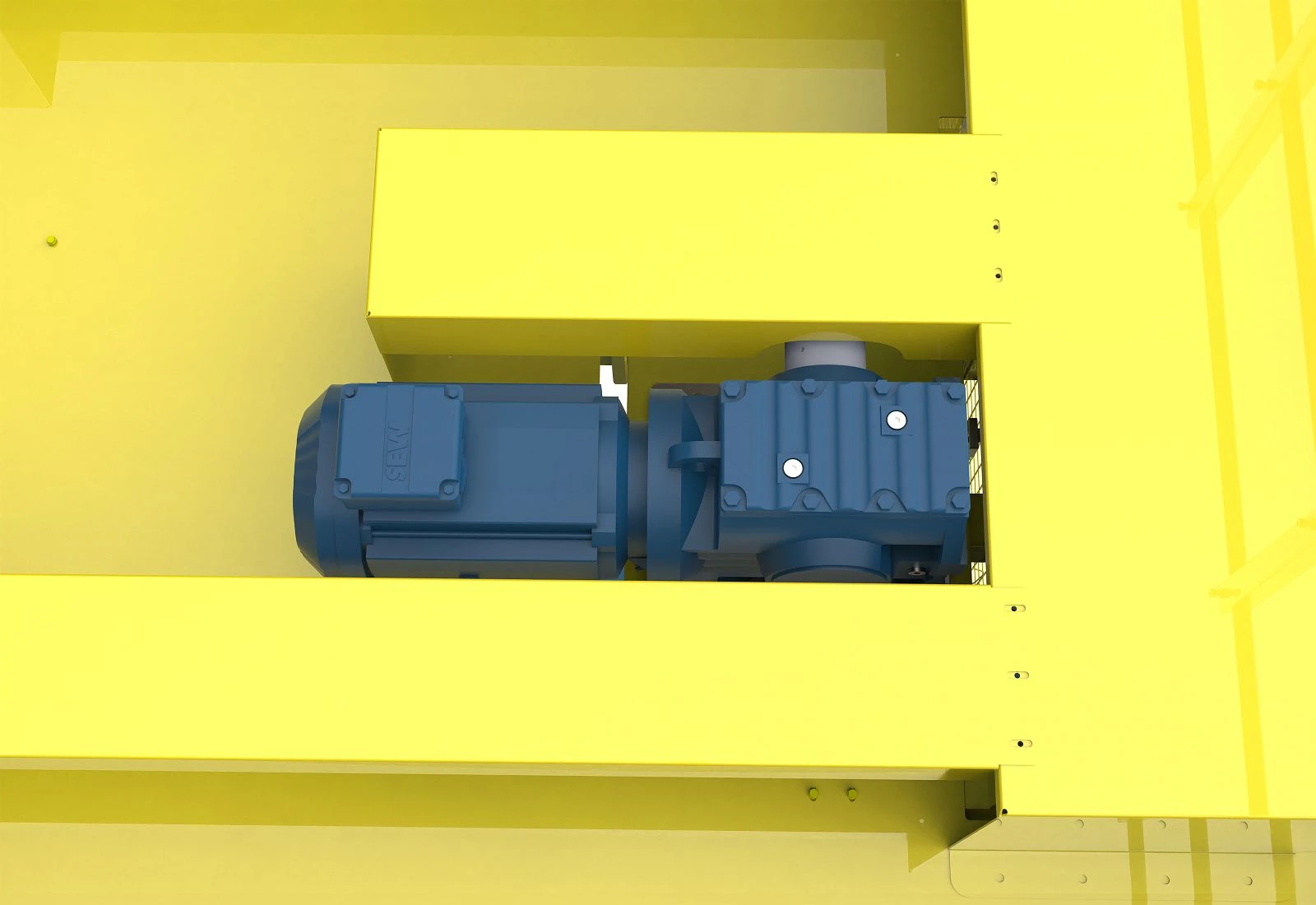

The lifting mechanism uses an electric motor. Lifting stroke is 1875 mm and motor power is 2.2 kW.

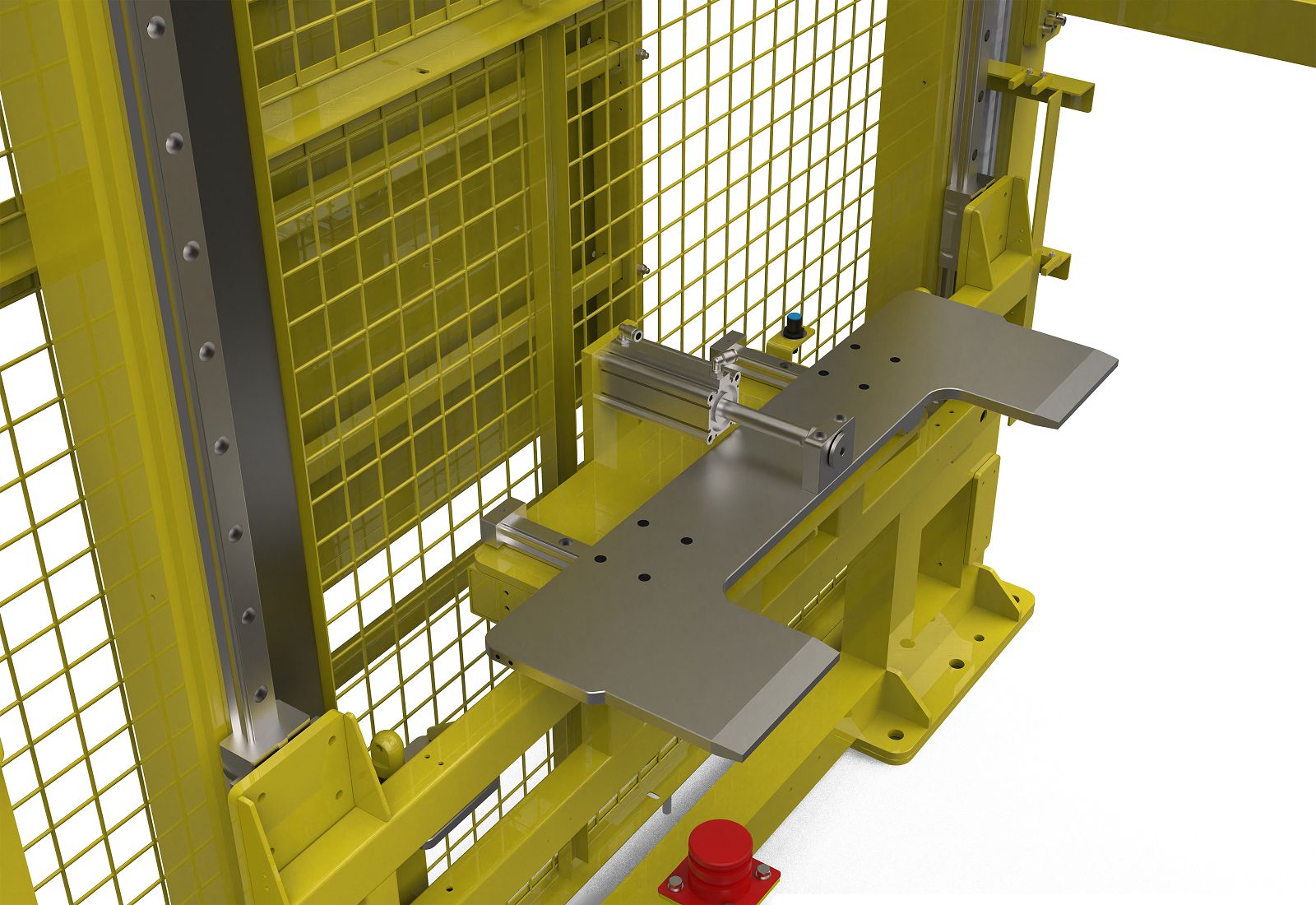

The gripping mechanism remains pneumatic. It uses D50 × 2 cylinders with a 100 mm gripping stroke and requires an operating pressure of 0.5–0.6 MPa.
The electric lifting system adjusts the vertical position of the pallet stack, while the pneumatic gripping structure separates and holds pallets during the operating cycle.
Technical Inputs for AGV and Conveyor Integration
For an Electric Pallet Stacker Destacker project, buyers should confirm pallet material, pallet dimensions, maximum stack weight, target stacking height, pallet gripping positions, and AGV entry direction.
The compressed-air requirement for the gripping mechanism should also be considered even though the main lifting action is electrically driven.
The working temperature range is -10°C to 45°C, with relative humidity below 85%.
For non-standard pallets or installations with special height requirements, pallet drawings, conveyor height, AGV movement direction, and equipment layout conditions should be provided during solution design. This allows the gripping structure and mechanical interfaces to be matched to the actual pallet rather than relying only on standard dimensions.
Cross-Discipline Support for Pallet Automation
in one-stop service
Anhui Rayo Automation Technology Co., Ltd. was established in 2009 and has engineering capabilities in intelligent logistics, non-standard automation equipment, and system integration.
The company has approximately 500 employees. Technical resources include mechanical design, electrical control, software development, system integration, onsite commissioning, and after-sales support.
Manufacturing equipment includes gantry machining centers, CNC machining centers, laser cutting machines, CNC lathes, and bending machines.
For an Electric Pallet Stacker Destacker connected with AGVs and conveyors, the mechanical interfaces and control logic can be planned together. Support can cover requirement analysis, solution design, manufacturing, installation, commissioning, and subsequent service.
|
Parameter Category |
Parameter |
Specification |
Customization / Options |
|
Basic Parameters |
Maximum Load |
750 kg |
|
|
Applicable Pallet Size |
1000×1200 / 1000×1600 / 1200×1200 mm |
Customizable |
|
|
Conveyor Height |
300 mm |
≥300 mm customizable |
|
|
Stacking Height |
2800 mm |
Customizable |
|
|
Fork Parameters |
Drive Method |
Cylinder D50×2 |
|
|
Fork Stroke |
100 mm |
||
|
Lifting Parameters |
Drive Method |
Geared motor 2.2 kW |
|
|
Lifting Stroke |
1875 mm |
Customizable |
|
|
Operating Environment |
Working Pressure |
0.5-0.6 MPa |
|
|
Ambient Temperature |
-10°C to 45°C |
||
|
Relative Humidity |
≤85% |
