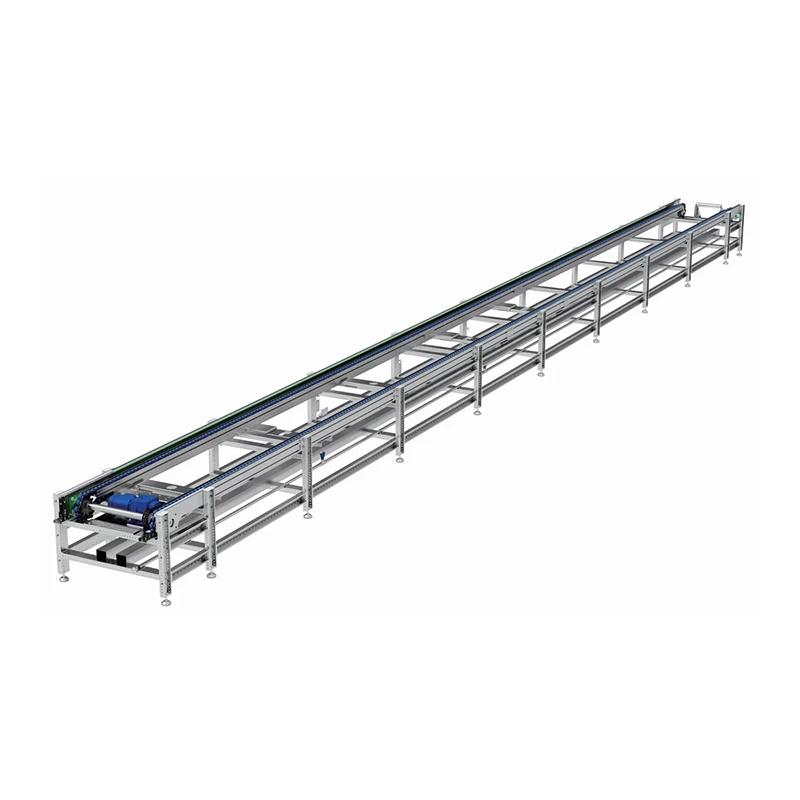

Free Flow Chain Conveyor
Continuous Workpiece Carrier Flow with Station Accumulation
The RCVB-0250 series is a free-flow chain conveyor developed for continuous workpiece carrier transport, station accumulation, and material movement through automated production lines.

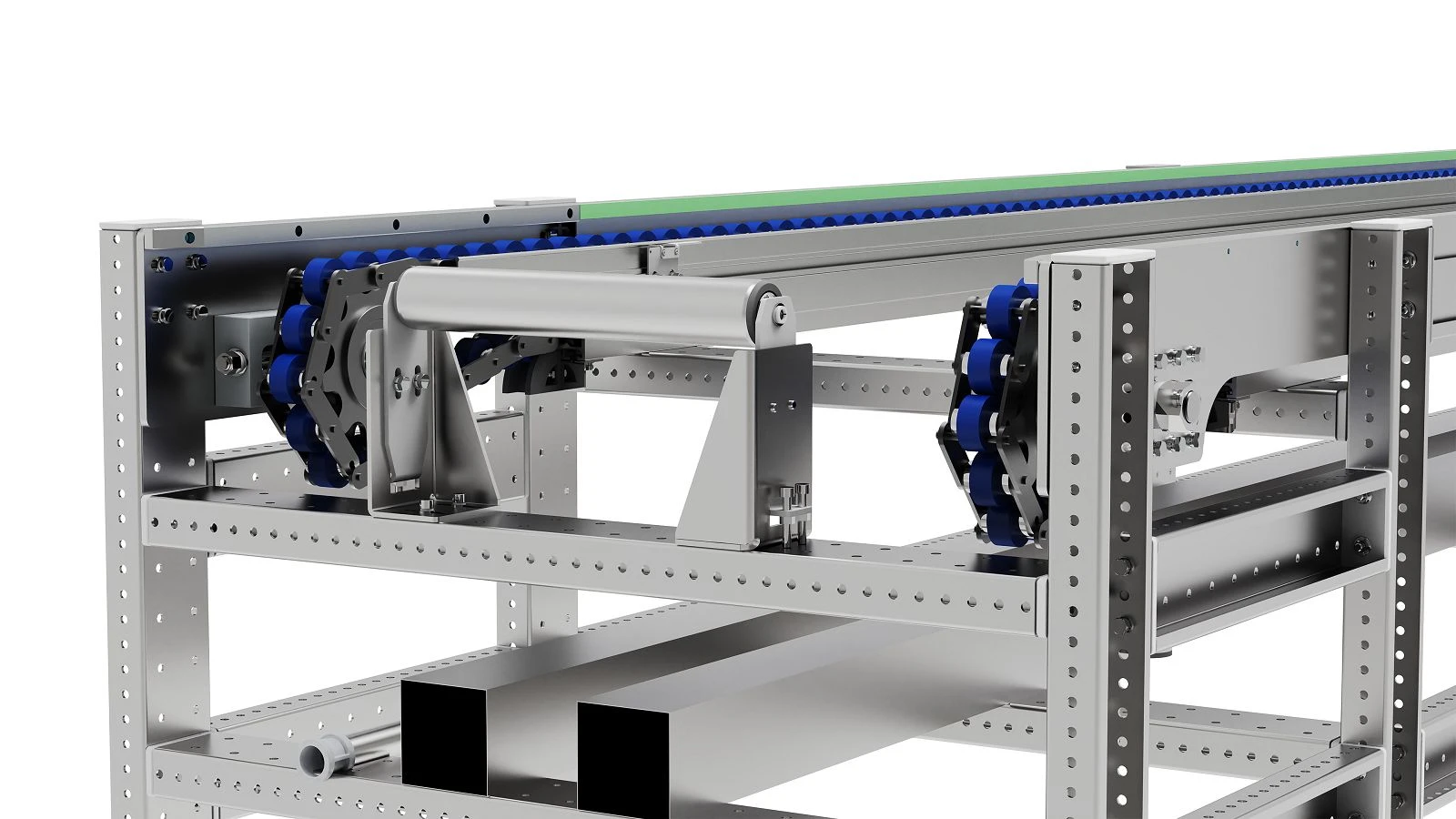

The conveyor uses a free-flow chain as the main transport mechanism. Workpiece carriers move along the production route while the chain continues to operate. The supplied product information describes the conveyor as providing stable operation with relatively low noise.
One important feature is its ability to work with stopping devices. A carrier can remain at a designated workstation while the conveyor chain continues moving. This means different assembly, inspection, processing, or automated operation stations do not all need to have the same cycle time.
The Free Flow Chain Conveyor is therefore suitable for production processes where materials need to move continuously but individual workstations require different processing or waiting times.
The source material also specifically states that the equipment should avoid operation in environments with oil contamination. This condition should be considered during plant layout and equipment selection.
Single-Level or Double-Level Production Layout
The conveyor uses a modular structure and can be configured as either a single-level or double-level system. Double-level and higher layouts can be assembled through modular sections according to the required production route.
Available line widths include 1000 mm, 1200 mm, and 1600 mm.
The standard equipment length is 6000 mm, while project customization is supported up to approximately 12 m according to the supplied information.
Conveying height can be configured according to the single-level or double-level structure. The source includes a 750 mm configuration and corresponding height arrangements for double-level systems, with customization available within the project design.
Conveying speed is 18 m/min.

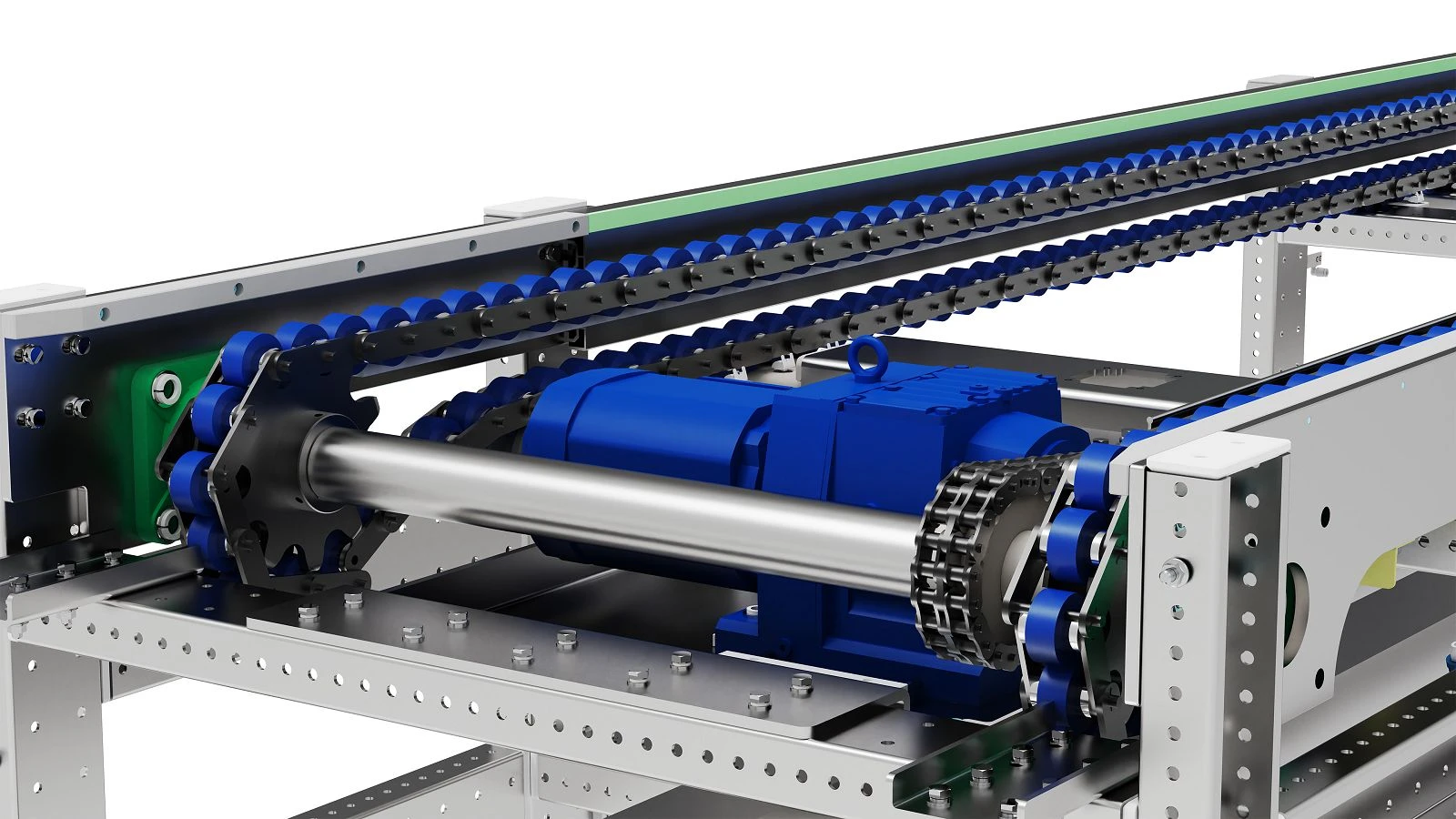

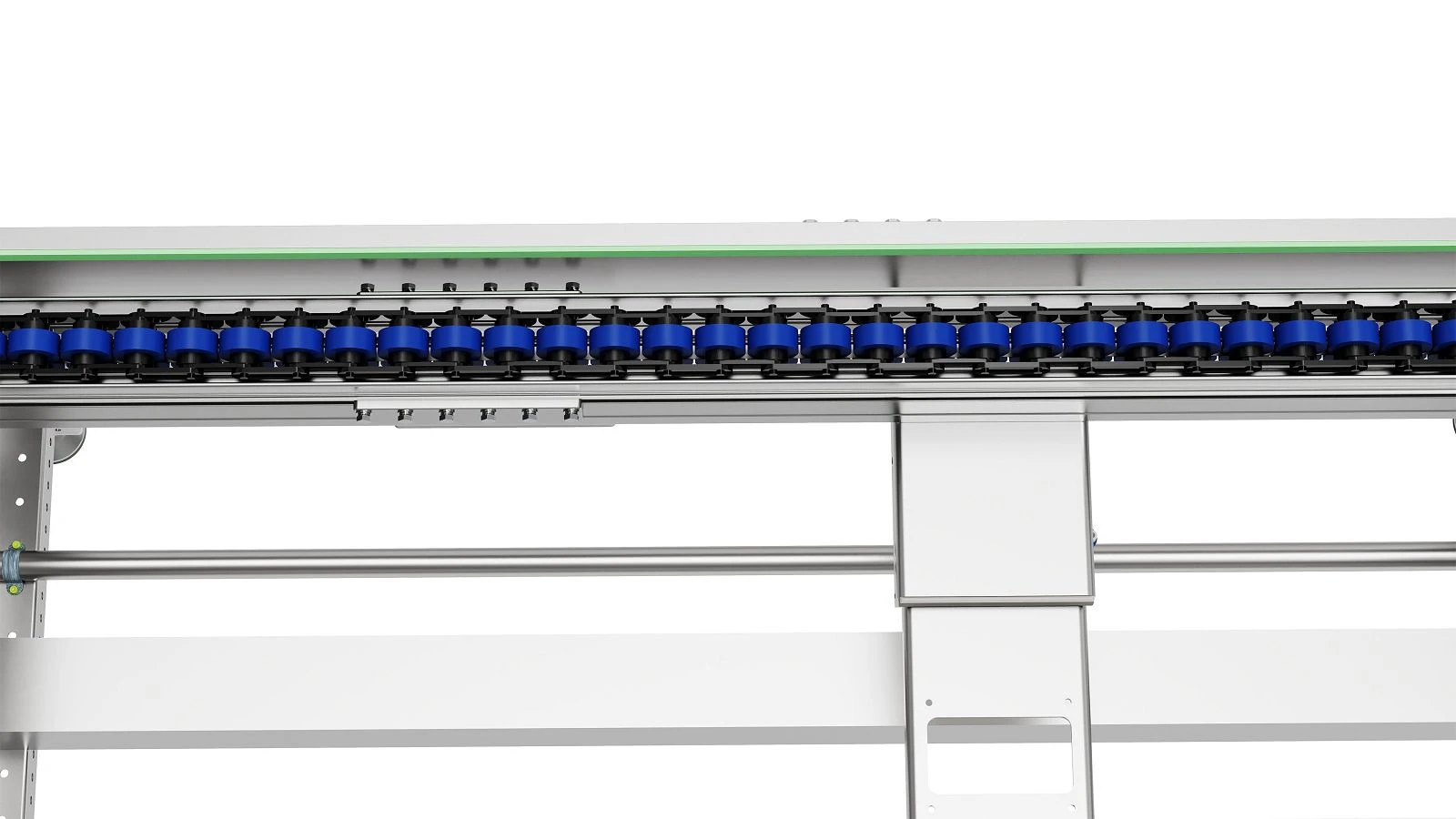

The drive system uses a geared motor. A single-level configuration uses a 1.1 kW motor, while a double-level layout uses a corresponding dual-drive configuration.
Designed Around Workstations and Production Cycle
Selection of a Free Flow Chain Conveyor should be based on more than conveyor length.
Buyers should confirm the workpiece carrier size, unit load, total conveyor length, effective conveying width, number of workstations, stop positions, and whether a single-level or double-level layout is required.
The ability to accumulate carriers is particularly useful when process times differ between workstations. Assembly, robotic operations, automatic inspection, and manual production stages can each have their own stopping time while the main chain continues operating.
The specified working temperature is -10°C to 45°C, with relative humidity below 85%.
For lines requiring several assembly or inspection positions, the location of stopping devices and conveyor sections can be confirmed during the solution design stage.
Production-Line Engineering and Customization
in one-stop service
Anhui Rayo Automation Technology Co., Ltd. was established in 2009. Its business includes intelligent assembly, intelligent logistics, robotic collaboration, automated inspection, and digital systems.
The company has approximately 500 employees covering mechanical design, electrical control, software development, and system integration.
Manufacturing equipment includes gantry machining centers, laser cutting machines, CNC machining centers, CNC lathes, and bending equipment. Rayo can support structural manufacturing and complete line assembly.
For customized Free Flow Chain Conveyor projects, line length, width, number of levels, workstation positions, and production process requirements can be reviewed together with the customer's site drawings before manufacturing and commissioning.
|
Parameter Category |
Parameter |
Specification |
Customization / Options |
|
Basic Parameters |
Maximum Load |
250 kg/m |
|
|
Applicable Pallet Size |
1000×1200 / 1000×1600 / 1200×1200 mm |
Customizable |
|
|
Equipment Length |
6000 mm |
Up to 12 m customizable |
|
|
Conveyor Width |
1000 / 1200 / 1600 mm |
Customizable |
|
|
Conveyor Height |
Single level: 750 mm; double level: level 1 450 mm / level 2 750 mm |
≥400 mm customizable |
|
|
Basic Parameters |
Number of Levels |
Single level / double level |
|
|
Equipment Color |
Galvanized |
Customizable |
|
|
Conveyor Parameters |
Drive Method |
Geared motor 1.1 kW |
|
|
Conveyor Speed |
18 m/min |
||
|
Operating Environment |
Ambient Temperature |
-10°C to 45°C |
|
|
Relative Humidity |
≤85% |
