Light Duty Pneumatic Transfer Unit



Pneumatic 90-Degree Transfer for Totes and Light Loads

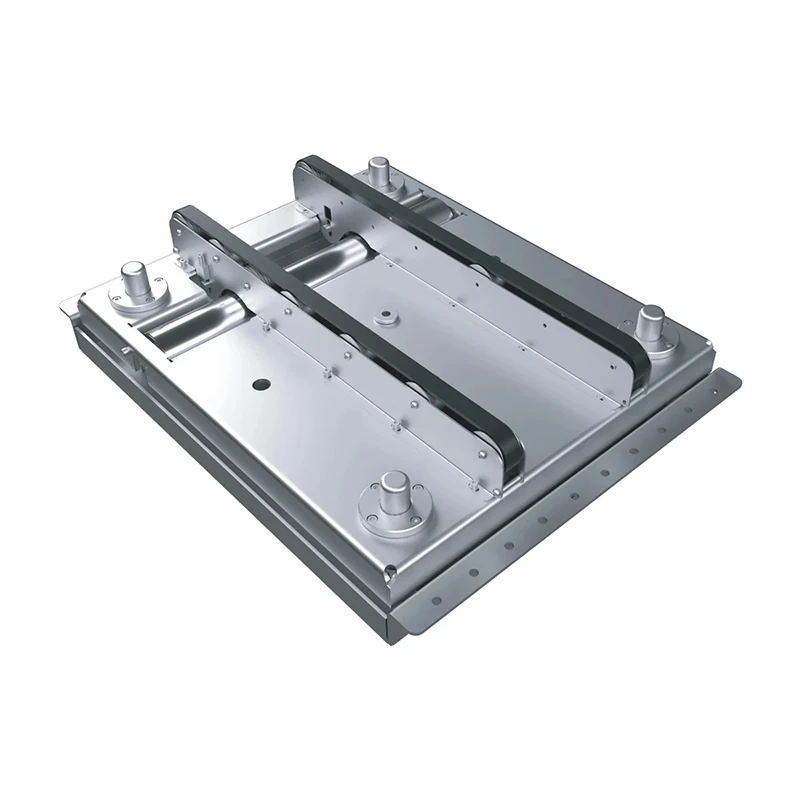

The RDVQ-0100 is a pneumatic lifting and transfer unit designed for changing the conveying direction of totes, turnover boxes, and other light materials within an automated conveyor system.

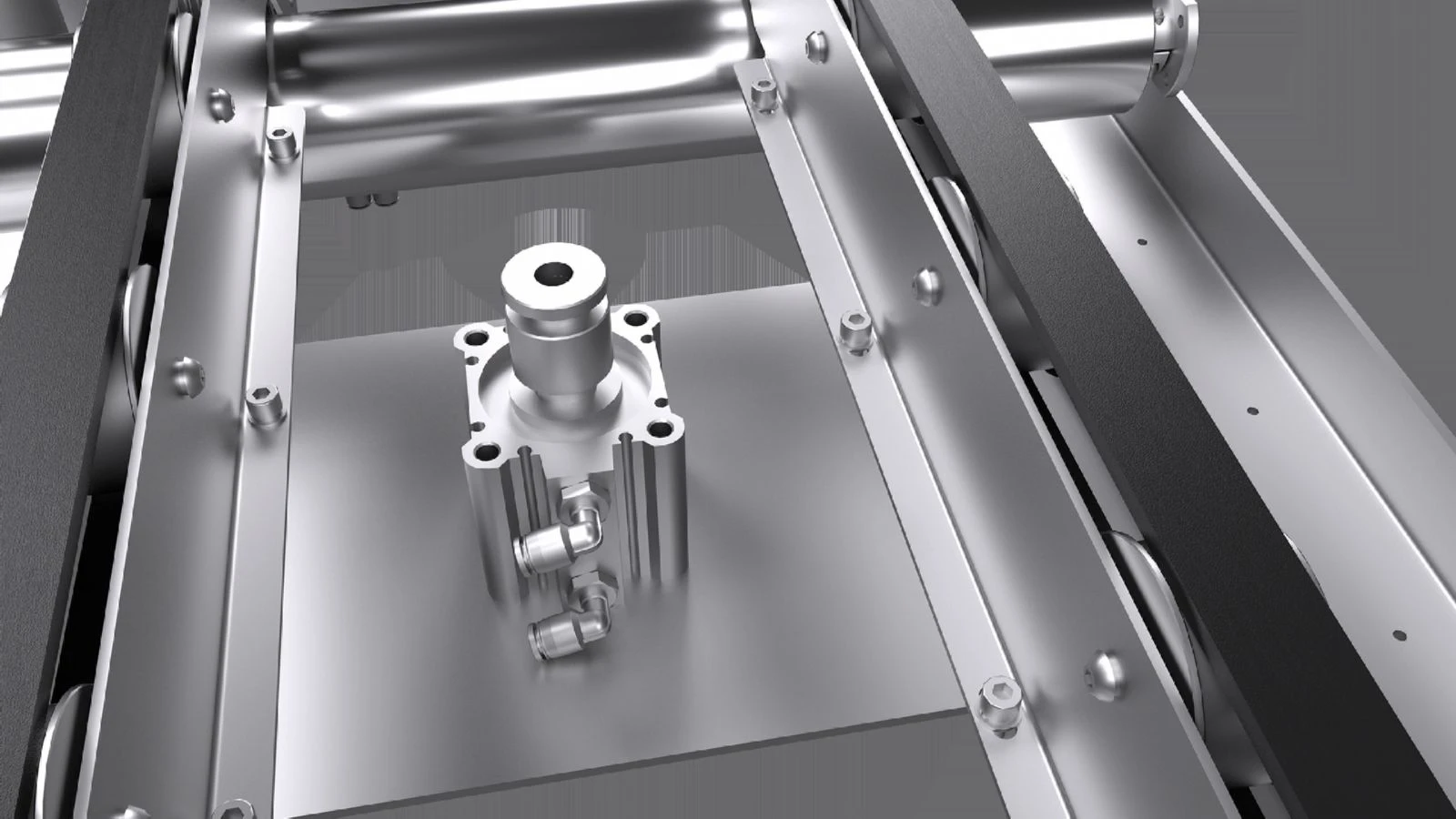

Its maximum load capacity is 100 kg. The lifting section uses a D50 pneumatic cylinder and a standard 20 mm lifting stroke. When a tote reaches the transfer position, the unit raises the material and transfers it toward the required conveyor direction.

This compact action makes the Light Duty Pneumatic Transfer Unit suitable for production logistics lines, assembly-line material delivery, tote conveyor systems, and warehouse inbound or outbound interfaces where a simple directional transfer point is required.

Standard models support 600 × 400 mm and 800 × 600 mm totes. Tote dimensions can also be customized according to the project.

1.5-Second Lifting and Lowering Cycle



The lifting time is 1.5 seconds, while lowering also takes 1.5 seconds.

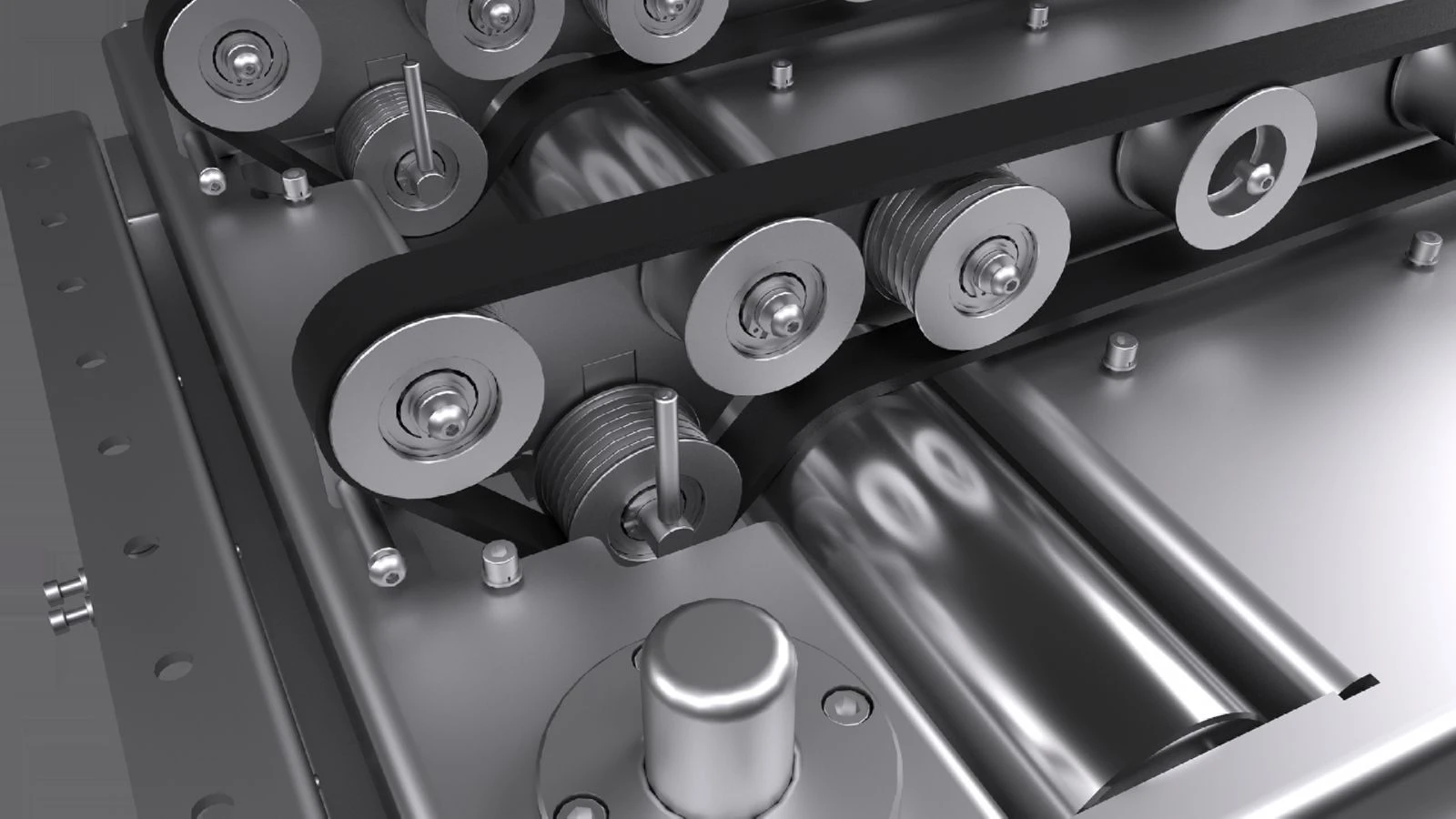

The conveyor section uses a DC24V 50W motorized roller. A PD belt conveyor configuration can be selected, with a conveying speed of 60 m/min.

The pneumatic system requires an operating pressure of 0.5–0.6 MPa.

Because the lifting structure mainly consists of the cylinder assembly and standardized connecting components, routine maintenance does not require a complex lifting transmission mechanism to be dismantled. Common wear components can be inspected and serviced through a relatively simple mechanical arrangement.

The supplied product information also emphasizes the relatively high use of general-purpose components, which can be useful for projects that want to control mechanical complexity while meeting basic light-load transfer requirements.

For a Light Duty Pneumatic Transfer Unit project, buyers should first confirm the maximum unit weight, tote dimensions, main conveyor direction, required transfer direction, available installation space, and conveyor operating cycle.

A continuous compressed-air supply of 0.5–0.6 MPa is required.

The standard lifting stroke is 20 mm, while project customization is supported. If the unit needs to be installed into an existing conveyor system, the upstream and downstream conveying heights should also be provided during the technical review.

The specified working temperature is -10°C to 45°C, with relative humidity not exceeding 85%.

These basic site conditions should be checked before the final mechanical interface is confirmed.

10Yares of experience
in one-stop service

Anhui Rayo Automation has mechanical design, electrical control, onsite commissioning, and system integration teams that can incorporate the transfer unit into a larger production logistics system.

The company applies standardized internal processes from requirement understanding and solution design to manufacturing and final installation and commissioning.

Its manufacturing resources include CNC machining centers, laser cutting machines, CNC lathes, and bending machines. These capabilities support mechanical component production and complete equipment assembly.



300+

Global Clients

99+

Intellectual Property Rights

4+

Overseas Offices Estabiished

6000+

Project Deliveries

For a Light Duty Pneumatic Transfer Unit requiring non-standard tote dimensions, conveying direction, or lifting stroke, the final structure can be designed according to actual site conditions. Engineering support can then continue into onsite commissioning and after-sales service.
