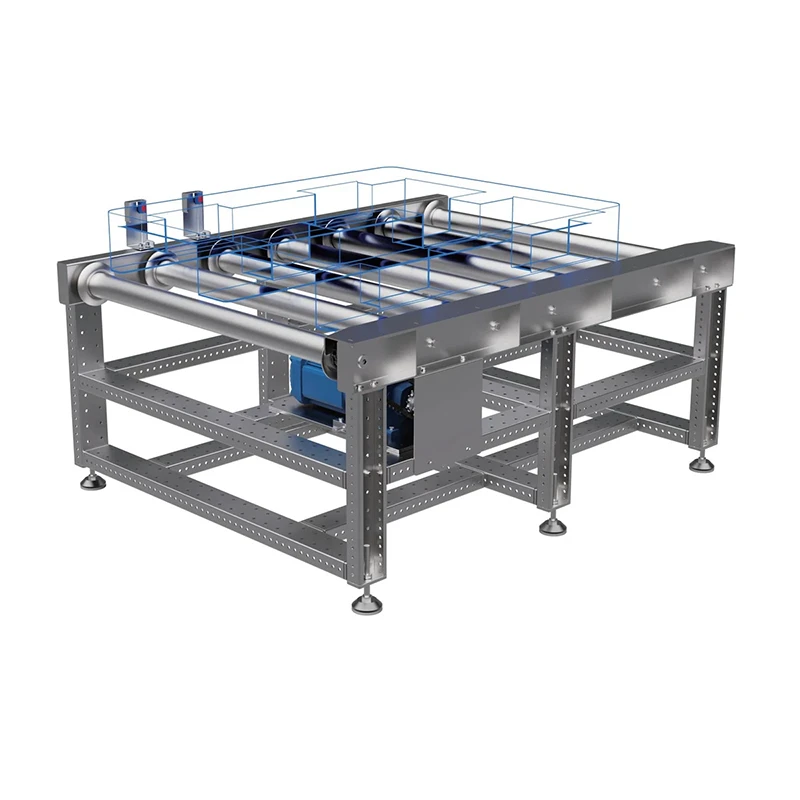

Heavy Duty Roller Conveyor

The RCVG-0250/1000 is an industrial roller conveyor for horizontal handling of pallets and heavier carriers, available in 250 kg and 1000 kg load ratings. Continuous rollers form the load-bearing surface and support pallet movement through production areas, logistics routes, warehouse infeed and outfeed zones, and interfaces between automated machines. A Heavy Duty Roller Conveyor combines strong load capacity with a rounded roller profile that provides comparatively gentle contact with non-metal pallet bases, making it suitable for stable, continuous operation in demanding material-handling environments.

Correct selection depends mainly on load conditions and the pallet base. Customers should provide maximum gross pallet weight, pallet length and width, bottom support-beam positions, conveying distance, transfer height, and the type of upstream and downstream equipment. The specified operating temperature is -10°C to 45°C with relative humidity below 85%. The modular design supports on-site assembly and commissioning, and non-standard width, machine length, or conveyor height can be adjusted to match a production line or warehouse layout.

Rayo has engineering capabilities in smart logistics systems and customized automation equipment and can design mechanical, electrical, and control interfaces around the complete pallet route. Gantry machining centers, laser cutting machines, CNC machining centers, CNC lathes, and bending equipment support in-house fabrication of structural and mechanical components followed by full-machine assembly and testing. Mechanical designers, control programmers, field engineers, and after-sales personnel can remain involved from specification confirmation through delivery. For batch procurement or a complete logistics line, the Heavy Duty Roller Conveyor can also be configured around actual throughput and site layout.
