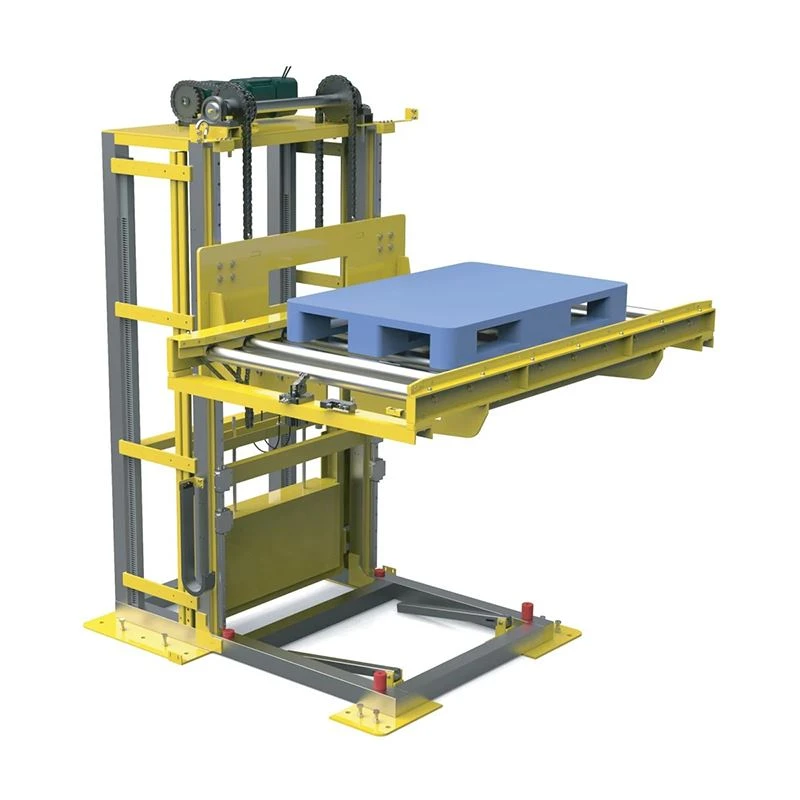

Cantilever Pallet Lift

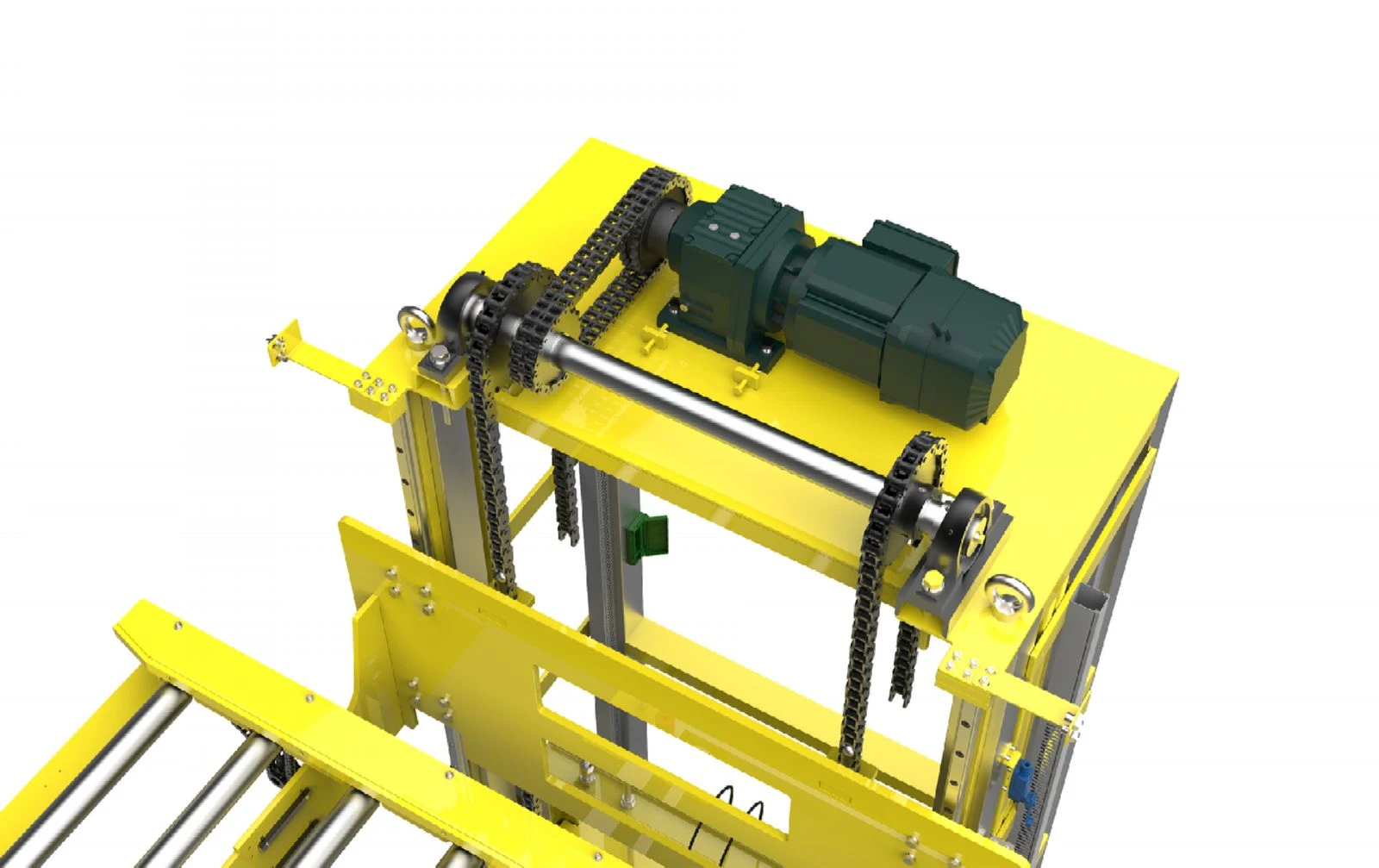

The streamlined mechanical layout and concentrated transmission components simplify routine inspection, maintenance, and replacement work. Before ordering, users should define the maximum pallet weight, bottom structure, length and width, infeed height, discharge height, total lift travel, conveying direction, and required maintenance clearance. If the machine will connect to an existing conveyor, its elevation and interface dimensions should also be provided. The specified operating range is -10°C to 45°C with relative humidity below 85%, subject to final confirmation against the actual plant environment.

Rayo's mechanical, electrical, software, and system-integration specialists can design the lift, controls, and connected conveyor interfaces as one solution. The company has approximately 500 employees and maintains R&D centers and branches in Shenyang, Shanghai, and Guangzhou. Its manufacturing equipment includes gantry machining centers, laser cutters, CNC machining centers, CNC lathes, and bending machines, supporting in-house component production and full-machine assembly. Where machine height, conveyor interfaces, or structural dimensions need to be customized, the Cantilever Pallet Lift can be supported from initial engineering through installation, commissioning, and after-sales service.
