Single-arm Bin Lifter

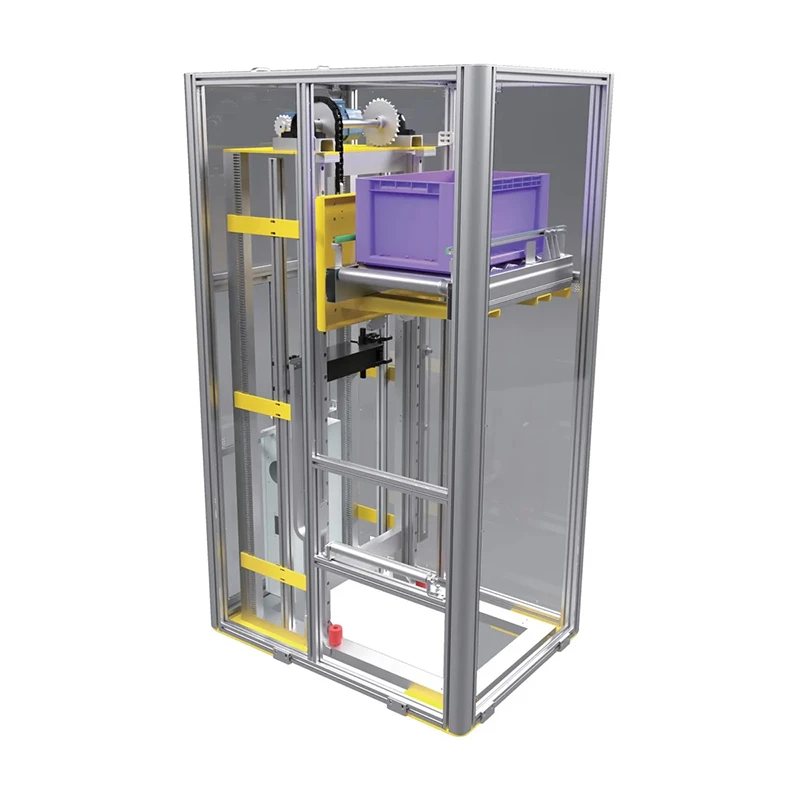

The RLFD-0100 is a single-arm tote lift rated for up to 100 kg and designed for light totes, bins, and boxed components moving between different working heights. Its compact layout places the lifting and conveying mechanisms within a relatively small installation footprint, making it suitable for crowded production areas or local vertical-transfer stations. In light-load applications, a Single-arm bin lifter can connect production logistics, assembly-line feeding, and warehouse circulation processes while fitting into an existing workstation layout.
The unit accommodates 600 × 400 mm and 800 × 600 mm totes. Minimum conveyor height is 300 mm and standard machine height reaches up to 4 m, with customization within that range. E-, F-, and L-type conveying directions are supported, and the carriage can be configured with one or two levels. Maximum lifting speed is 30 m/min both unloaded and loaded, with 0.5 m/s² acceleration. The lift uses a 0.55 kW geared motor with chain transmission, while the roller conveyor reaches 60 m/min. These options allow the Single-arm bin lifter to match different infeed and discharge arrangements.
The simple mechanical structure and limited number of transmission components make inspection and part replacement more straightforward. The specified operating temperature is -10°C to 45°C, relative humidity is no higher than 85%, and operating noise is no higher than 75 dB(A). Selection should focus on maximum tote weight, outside dimensions, infeed and discharge heights, conveying direction, and available surrounding space. The 300 mm minimum transfer elevation and project customization up to 4 m are particularly useful when checking compatibility with existing production equipment.
in one-stop service
Rayo has worked in automation R&D and equipment manufacturing since 2009 and maintains mechanical design, electrical control, and field-commissioning capabilities. R&D centers and branches are located in Shenyang, Shanghai, and Guangzhou. CNC machining centers, laser cutting machines, CNC lathes, and bending equipment support in-house component manufacturing and machine assembly. Where a project requires a non-standard height, different transfer direction, or unusual installation envelope, the Single-arm bin lifter can be engineered from requirement definition and design through manufacturing, site commissioning, and after-sales support.
|
Parameter Category |
Parameter |
Specification |
Customization / Options |
|
Basic Parameters |
Maximum Load |
100 kg |
|
|
Applicable Tote Size |
600×400 / 800×600 mm |
Customizable |
|
|
Transfer Direction |
E-type / F-type / L-type |
Customizable |
|
|
Car Type |
Single-level car / double-level car |
Customizable |
|
|
Equipment Height |
4 m |
Within 4 m customizable |
|
|
Minimum Conveyor Height |
300 mm |
||
|
Lifting Parameters |
Drive Method |
Geared motor 0.55 kW |
Servo motor |
|

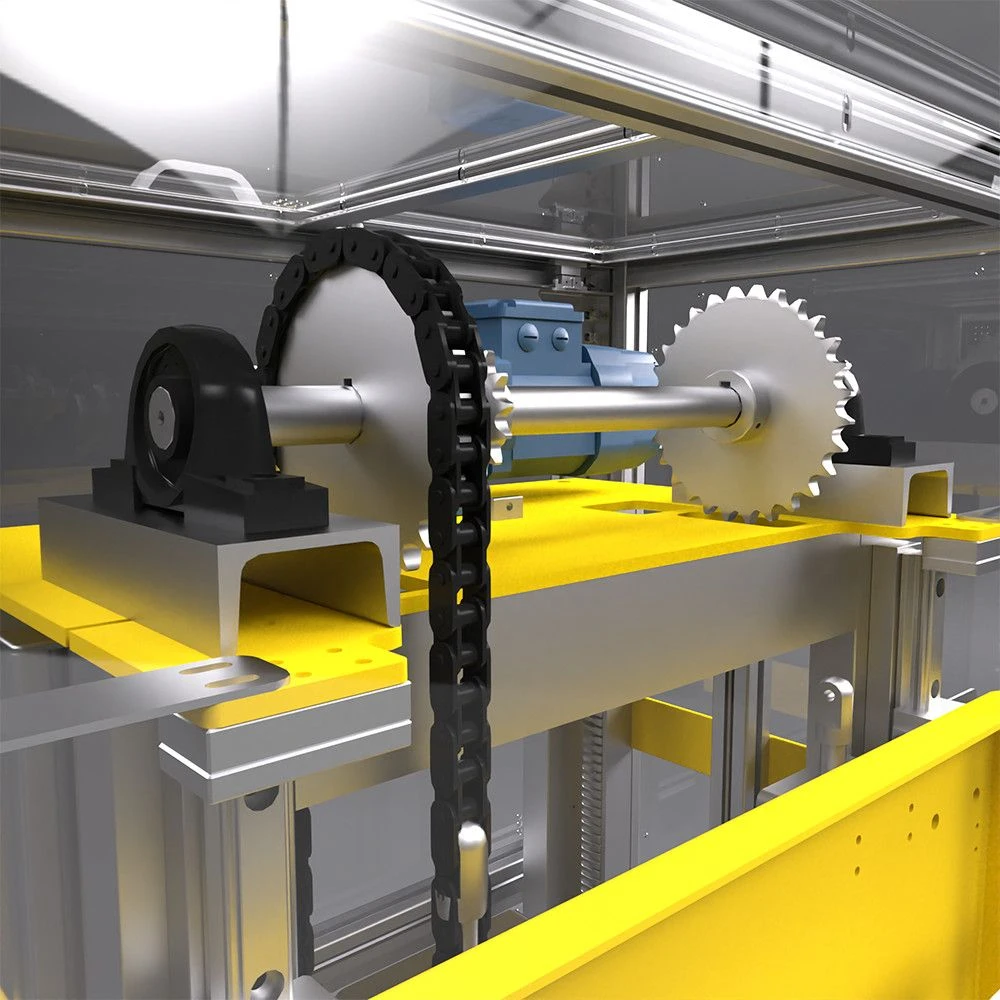

Transmission |
Chain drive |
||
|
Maximum No-load Speed @ Acceleration |
30 m/min @ 0.5 m/s² |
||
|
Maximum Loaded Speed @ Acceleration |
30 m/min @ 0.5 m/s² |
||
|

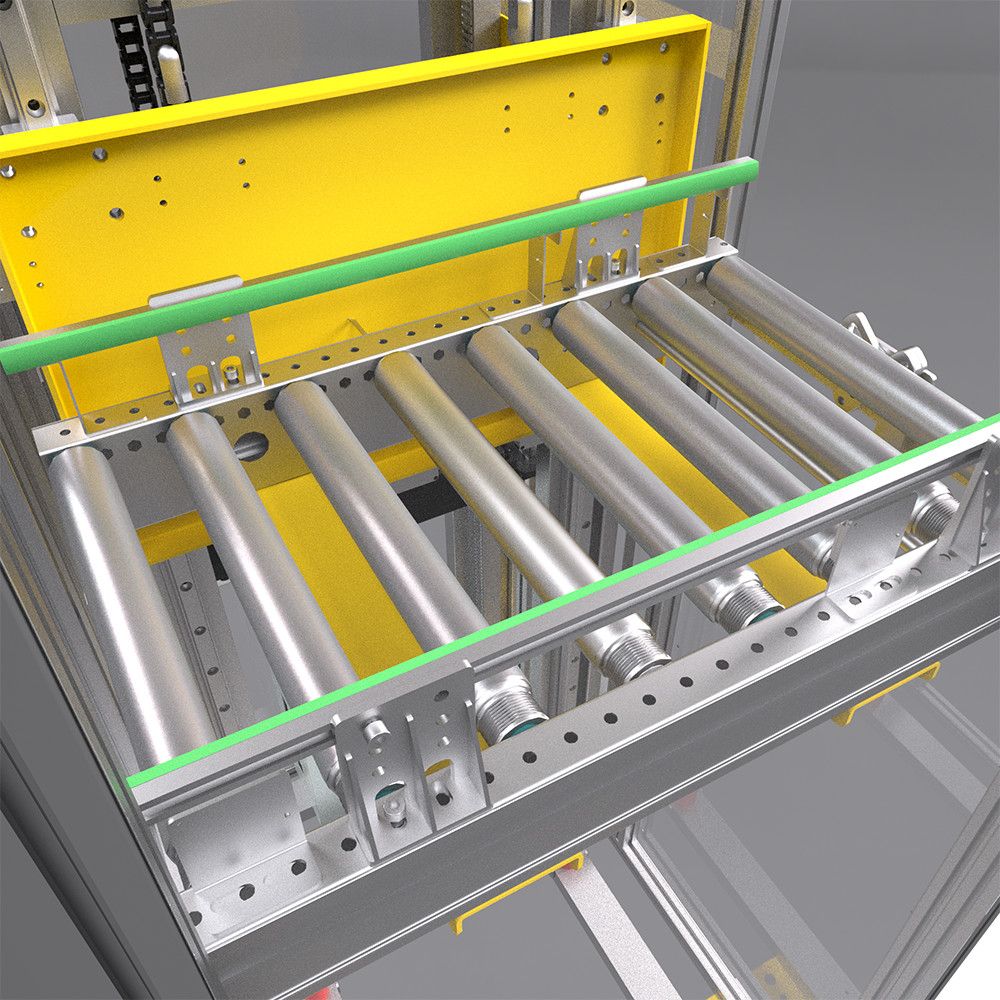

Conveyor Parameters |
Drive Method |
Electric roller DC24 V 50 W |
|
|
Conveyor Type |
Roller |
||
|
Maximum Speed |
60 m/min |
||
|
Operating Environment |
Ambient Temperature |
-10°C to 45°C |
|
|
Relative Humidity |
≤85% |
||
|
Operating Noise |
≤75 dB(A) |
||
|
Safety Protection |
Standard Configuration |
Safety net |
Standard |
|
Optional Configuration |
Safety door; safety ladder; safety light curtain |
Optional |
