Vrc Conveyor

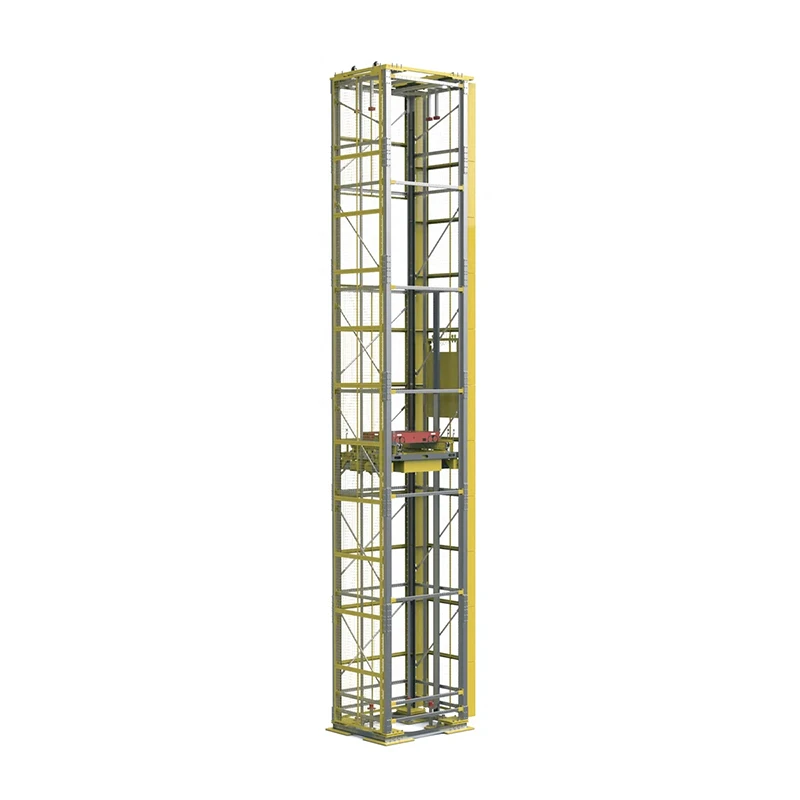

The RLFL-0500/1000/1500 is a gantry lifting system developed specifically for moving four-way pallet shuttles between rack levels together with their carried pallets. The gantry frame provides stable platform support, while servo drives and rack-and-pinion transmission keep both sides synchronized during vertical movement. Horizontal alignment accuracy reaches ±2 mm, helping the shuttle enter or leave the destination rail smoothly. In a multi-level dense-storage system, a vrc conveyor serves as the vertical link that enables a shuttle to work across more than one rack level.

Load ratings of 500 kg, 1000 kg, and 1500 kg are available. Minimum conveyor height is 650 mm, and overall machine height can be customized from 4 to 24 m. Maximum lifting speed is 40 m/min with 0.3 m/s² acceleration. The platform conveyor reaches up to 18 m/min and uses a straight-plate roller-chain arrangement to move the shuttle and pallet between the lift platform and rack interface. The vrc conveyor can therefore be selected according to combined shuttle-plus-pallet weight, rack height, number of transfer levels, and required cycle rate.

The specified working environment is -10°C to 45°C, relative humidity no higher than 85%, and operating noise no higher than 75 dB(A). Safety equipment includes a safety door, safety ladder, and protective mesh to support installation, operation, and maintenance. During engineering, users should confirm total rack height, the number of level changes, platform interface elevations, and combined load. For non-standard building heights, the 4-24 m customization range allows the machine to follow the actual rack-level arrangement.

10Yares of experience
in one-stop service

Founded in 2009, Anhui Rayo Automation combines mechanical engineering, electrical control, software development, and system integration for gantry-lift projects involving servo control, alignment logic, and site-specific operating conditions. Its manufacturing equipment includes gantry machining centers, CNC machining centers, laser cutting machines, CNC lathes, and bending machines, supporting component production, full assembly, and testing. The project process covers requirement analysis, design, manufacturing, installation, commissioning, and after-sales support, with offices in the United States, Europe, Japan, and Thailand. This enables the vrc conveyor to be deployed in both domestic and international automated warehouse projects.
